A series of conjugated polyelectrolytes (CPEs) based on fluorene named 6,6'-(2-phenyl-9H-fluorene-9,9-diyl)bis(N,N,N-trimethylhexan-1-aminium) bromide (PFB-Br), 6,6'-(2-(thiophene-2-yl)-9H-fluorene-9,9-diyl)bis(N,N,N-trimethylhexan-1-aminium) bromide (PFT-Br), and 6,6'-(2-([2,2'-bithiophen]-5-yl)-9H-fluorene-9,9-diyl)bis(N,N,N-trimethylhexan-1-aminium) bromide (PF2T-Br) were synthesized and applied as the interlayer to investigate how the backbone structure influence the photovoltaic properties. The ionic functionality of CPE accumulates on the ZnO surface, owing to the existing interactions between the ionic groups and the ZnO. The CPE backbone is shifted toward the ZnO surface. Thus, there is a formation of interface dipole via the re-organization of the ionic side chains and hydrophobic backbone. However, incorporation of the electron-rich moiety, thiophene, or bithiophene, in the polymer backbone interfere with the electron transport at the cathode interface. As a result, the power conversion efficiency (PCE) of polymer with thiophene and bithiophene backbone structure was decreased compare with PFB-Br, which has electron-affinity property than PFT-Br, and PF2T-Br.
고분자의 주사슬 구조가 광전 특성에 어떠한 영향을 미치는지에 관하여 조사하기 위해 고분자 전해질, 6,6'-(2-phenyl-9H-fluorene-9,9-diyl)bis(N,N,N-trimethylhexan-1-aminium) bromide(PFB-Br), 6,6'-(2-(thiophen-2-yl)-9H-fluorene-9,9-diyl)bis(N,N,N-trimethylhexan-1-aminium) bromide(PFT-Br), 6,6'-(2-([2,2'-bithiophen]-5-yl)-9H-fluorene-9,9-diyl)bis(N,N,N-trimethylhexan-1-aminium) bromide(PF2T-Br)을 합성하여 유기 태양광 소자의 중간층으로 도입하였다. 이온성 곁사슬은 스핀 코팅 과정 도중에 ZnO와 상호 작용으로 인해 ZnO 표면으로 자발적으로 배향되며, 주사슬은 반대 방향으로 재배열된다. 고분자 전해질의 재배열로 인해 소자에서 일정한 배향을 가지는 영구 쌍극자가 형성됨으로써, 추가적인 내부 자기장이 형성된다. 주사슬에 도입된 벤젠에 비해 높은 전자 밀도를 가지는 thiophene과 bithiophene에 의해 서로 다른 전자친화도를 가지게 되어 PFT-Br, PF2T-Br의 전자 전달이 방해되고 PFB-Br에 비하여 더 낮은 전력 변환 효율을 나타냄을 확인하였다.
Keywords: polymer solar cell, fluorene-based polyelectrolyte, thiophene, cathode interlayer
This work was supported by the Korea Institute of Energy Technology Evaluation and Planning (KETEP) and the Ministry of Trade, Industry & Energy (MOTIE) of the Republic of Korea (No. 20194010201840) and was supported by the BB21+ Project in 2019.
Information is available regarding the experimental procedure for the synthesis, measurements, fabrication of polymer solar cells, UV-Vis spectra, CV, and IPCE spectra. The materials are available via the Internet at http://journal.polymer-korea.or.kr.
PK_2021_045_01_134_Supporting_Information_template.pdf (604 kb)
Polymer solar cells (PSCs) have much appeal due to their advantages, such as flexibility, lightweight, wide-area applications, and cost-effectiveness to manufacture. The record power conversion efficiency (PCE) have reached over 16%1-6 because of the outstanding progress of materials synthesis and device fabrication. The inverted PSCs (iPSCs) device architecture is one of the practical approaches to enhance the stability of the devices, simplify, and lowering the manufacturing cost.7,8 In the inverted PSCs, inorganic metal oxide (e.g., TiOx or zinc oxide) have been used as interfacial layers due to their capability for improving electron collection and their solution processability.9-12 Moreover, the light intensity in an active layer could be redistributed by the inorganic metal oxide, thus improve the light-harvesting.13 The pivotal point to iPSCs performance is the transporting material (interlayer) for electron transport or hole-blocking layer. The interlayer material should overcome the formation of Schottky contact between the cathode with LUMO level of the active layer. The HOMO level of the interlayer should be lower than the HOMO of donor material, and the LUMO of the interlayer must be similar to an acceptor material. The interfacial layer also should not be dissolved in the solvent that is used for active layer processing.14,15 Thus, many studies try to explore a variety of interlayer material to modify the energy level and improve its solubility in MeOH leading to orthogonal solubility with the active layer.
In the conventional PSCs, poly(3,4-ethylenedioxy thiophene): poly(styrene sulfonate) (PEDOT: PSS) is used as an interface layer to modify the ITO electrode.16,17 However, the use of PEDOT: PSS in the conventional PSCs affects rapid degradation, a short lifetime, and its acidic and hydrophobic properties. Also, the low work function of the metal anode is sensitive to oxygen and moisture.17-19 Whereas the iPSCs allow the use of less air-sensitive high work function metal, leading to better device stability, compare to conventional PSCs. Most of the devices apply ZnO as a passivation layer owing to ZnO show high performance compare with another interlayer. ZnO is the right choice for n-type semiconductors due to the low cost, high stability, facile synthesis, passivating surface defect, and favorable optical/electronic properties.11,20-22 The work function of ZnO is 4.40 eV that adequate energy level to lower the work function of the metal electrode or ITO and compatible with the LUMO level of various fullerene active material. The modification of ZnO material is still needed due to the characteristic of binary ZnO and defects within ZnO. The interface between the organic bulk heterojunction (BHJ) active layer and inorganic metal oxide ZnO has an unfavorable contact surface, thus limiting the transport efficiency and resulting in poor short-circuit current density (Jsc) and low fill factor (FF).23-25 Modification of interfacial engineering in the ZnO layer is one of the strategies to enhance the PCEs. The surficial defect on the ZnO layer conquered by applying organic interlayer materials such as self-assembled monolayer, ionic liquid materials, conjugated polymer electrolyte, and fullerene derivatives have been utilized to modify the ZnO layer.25-31 Recently, conjugated polyelectrolyte (CPE) arise as a good design for the interlayer modifier due to its delocalized p-p conjugated backbone with the ionic group. The devices with CPEs as the interlayer facilitated the electron transport and collection by the formation of interface dipole at the ZnO interface, which improves the device performance. The dipole moment of the CPE is determined by the spontaneous orientation of the ionic chain, which reduces the work function of metal oxide cathode.23,32-39
In this work, we fabricated iPSCs by using ZnO film with CPEs as an interlayer. Interestingly, CPEs on the ZnO surface re-modulate the interfacial interaction, reducing the energy offset and increasing the charge collection capability.37,40-42 The CPEs in this work are composed of the various backbone structure by inserting different moieties, including polyfluorene with phenyl (PFB), polyfluorene with thiophene (PFT), and polyfluorene with bithiophene (PF2T). The CPEs were designed and synthesized to study the effect of the backbone structure that could influence the performance of the device. To avoiding intermixing (orthogonal-solubility) with the active layer, the polymers have been quaternarized with trimethylamine. Thus, the CPEs can be processed from the alcoholic solvent. The structure of CPEs have the hydrophobic characteristics in the main chains, and the side chain has hydrophilic characteristics due to the ionic part at the end of the alkyl chain. Thus, quaternarized polyfluorene with trimethylamine, which alters solubility, can be an alternative for increasing device performance.43 Ionic functionalities in the CPEs are accrued on the ZnO surface owing to attractive interaction between the ionic salts and the hydrophilic ZnO. This indicates that the re-organization of CPEs occurs during the formation of CPE film.44 Also, the CPE backbone is directed away from the ZnO surface. Consequently, there are formation of interface dipole due to a redistribution of the internal electric field.45,46 As mentioned above, PFB-Br, PFT-Br, and PF2T-Br have different electronic properties of backbone, PFT-Br, and PF2T-Br have more electron-rich backbone than PFB-Br. Detailed investigations are performed to reveal the effect of various CPE backbone in iPSCs. As a result, the devices based on ZnO/CPE improve the power conversion efficiency compared to the device based on ZnO only. The PCE of the devices with CPE PFB-Br, PFT-Br, and PF2T-Br was 7.98% (Jsc=14.6mA/cm2, Voc=0.76V, FF=67.0%), 7.95% (Jsc= 15.9mA/cm2, Voc = 0.73 V, FF = 67.9%), and 7.95% (Jsc=15.3 mA/cm2, Voc=0.72V, FF=66.1%). The device based on ZnO has a typical open-circuit voltage (Voc) of 0.76V, a short-circuit current density (Jsc) of 14.6mA/cm2, and fill factor (FF) of 67.0% and PCE 7.41%. The main contribution for enhancing the PCE was the improvement of Jsc.
A series of CPEs with a different backbone were synthesized following modified polymerization procedures (Scheme S1),37,47,48 details about syntheses and characterization are given in Supporting Information. The polymerization reaction was also introduced according to the previous work.49 The chemical structure of quaternarized CPEs was shown in Figure 1, along with the inverted device structure. The optical properties of the three types of fluorene CPE are shown in Figure S1. UV-Vis absorption spectra were measured in solution and film. The absorption onset and absorption maximum of PFB-Br film appeared at 418 nm and 375 nm, respectively. In the case of PFT-Br film, the onset and absorption maximum appeared at 497 nm and 444 nm, respectively. The absorption maximum of PF2T-Br was shifted to a longer wavelength than PFB-Br and PFT-Br due to stronger electron-donating properties of thiophene and bithiophene group. The absorption maximum of PF2T-Br appeared at 523 nm and the onset at 462 nm. The optical bandgap for PFB-Br, PFT-Br, and PF2T-Br were 2.97, 2.49, and 2.37eV, respectively. PFB-Br exhibits a bigger optical bandgap compare to that of PFT-Br and PF2T-Br because thiophene and bithiophene group are more electron-rich than phenyl group.50 The cyclic voltammograms (Figure S2) of the CPEs were measured for estimating the energy levels. The HOMO energy levels of PFB-Br, PFT-Br, and PF2T-Br were -5.55, -5.36, and -5.22 eV, respectively. The LUMO levels figured out from the HOMO and the optical band gap were -2.58, -2.87, and -2.85eV, respectively. Noticeably, PF2T-Br exhibits the highest the HOMO level and the lowest LUMO level due to the electron-rich bithiophene unit in the backbone.
PFB-Br, PFT-Br, and PF2T-Br were applied as the interlayer in inverted bulk heterojunction (BHJ) iPSCs with device configuration ITO/ZnO/CPE/PTB7:PC71BM/MoO3/Ag. Detailed fabrication procedures of PSCs are described in Supporting Information, and the performances of the devices with CPEs as the interlayer are summarized in Table 1. We investigated the effect of different backbone functionality on the photovoltaic properties. Figure 2 shows the current density (J) vs. voltage curves (V) of PSCs with the optimum condition under AM 1.5G solar illumination at 100 mWcm-2 and under dark conditions. The performance of the devices with CPEs as interlayer exhibited significant enhancement by comparing those of the device with pristine. The optimum thickness of the interlayer showing the best PCE was determined to be 3nm. In the device based on pristine ZnO, a typical open-circuit voltage (Voc) of 0.76V, a short-circuit current density (Jsc) of 14.6mAcm-2, and a fill factor (FF) of 67.0% and PCE 7.41%. The PCE of the devices with CPE PFB-Br, PFT-Br, and PF2T-Br was 7.98% (Jsc=14.6 mA/cm2, Voc=0.76V, FF=67.0%), 7.95% (Jsc= 15.9mA/cm2, Voc=0.73 V, FF=67.9%), and 7.95% (Jsc=15.3 mA/cm2, Voc=0.72 V, FF=66.1%), respectively. These results showed that the stacked interlayer of ZnO/CPE gives excellent interface properties. The main contribution for enhancing the performance of the devices with interlayer was the improvement of Jsc. Regardless of the high HOMO and LUMO energy level of CPEs, CPEs reduces a Schottky barrier at the cathode.45,51 The solar cell incorporating interlayer of PFB-Br, PFT-Br, and PF2T-Br, exhibited almost identical Voc, and FF except Jsc. The performances of the device based on PFT-Br showed slightly lower than those of the device based on PFB-Br. However, the PCE of the PSC based on PF2T-Br exhibited the lowest PCE among the devices.
We performed Kelvin probe microscopy (KPM) measurements to investigate the effect of interlayer on the work function of ZnO.21,52-57 The charge collection interrupt in the devices due to a larger Schottky barrier. Therefore, the formation of Ohmic contact is one of the critical factors in achieving a high Jsc. As shown in Figure 3, the work function of ZnO with PFB-Br, PFT-Br, and PF2T-Br were -4.00, -4.01, and -4.04 eV, respectively, while the work function of ZnO was -4.4 eV. The change of the ZnO work function after introducing CPE indicates the reduction of Schottky barrier height and improvement in Jsc. Herein, it was founded that the Jsc improvement indicates the formation of favorable interface dipole. The work function of CPE was slightly different from PFB-Br, PFT-Br, and PF2T-Br. However, the change in the work function of ZnO not dependent upon changing the backbone structure of CPE. Calculated Jsc data from the IPCE curves (Figure S3) were coherent with the change Jsc data obtained from the devices under 1.0 sun condition.
The Rs data were calculated from the inverse slope near the high current region in the dark J-V curves. The Rs value of the ZnO, PFB-Br, PFT-Br, and PF2T-Br were 2.91, 1.93, 2.13, and 2.53W cm2, respectively. The decrease in Rs is a vital point in achieving a high FF.58-61 As summarized in Table 1, the devices with CPE display lower the Rs than pristine, and PFB-Br based device displays the lowest Rs among PFT-Br and PF2T-Br based devices. It’s related with the energy barrier at the interface resulted in higher PCE.45,56 The Rs of PFT-Br and PF2T-Br are higher than PFB-Br. The trade-off between the benefit of a favorable interfacial dipole and the mismatch of the backbone structure reduces the efficiency of inserting thiophene and bithiophene. PFB-Br, which has high electron-affinity owing to benzene moiety, shows facile electron collection. On the other hand, PFT-Br and PF2T-Br show inhibited electron collection induced from an abundant electron density of backbone structure leads to lower PCE compare with PFB-Br.
The electrical impedance spectroscopy (EIS) under the dark condition of the devices was performed to investigate the carrier transport and recombination. The EIS measurement showed the Nyquist plots of the PSCs at the Voc condition. The EIS spectra were linearly fitted to calculate the recombination resistance (Rrec). The EIS spectra are composed of two depressed semi-circles. In the plot (Figure 4), a high-frequency region corresponds to the response of the photoactive layer, while the lower frequency region corresponds to the response interlayer electrode.62,63 The semi-circle size of EIS relates to the magnitude of Rrec and the amount of the charge recombination in PSCs.63-65 The Rrec of PFB-Br, PFT-Br, and PF2T-Br based devices were 23.87, 12.47, and 10.65kW, respectively, and 4.75 kW for the device based on pristine ZnO. The device based on ZnO with PFB-Br showed the biggest Rrec, indicating the minimum recombination at the interface among the devices. The change of Rrec coherent with those of the FF of PSCs.
To further investigate the electron injection properties of the iPSCs with different CPEs, we fabricate a device based on electron-only with a structure of ITO/ZnO (25nm)/CPE/PC71BM/Al (100 nm). The electron mobility was estimated using the Mott–Gurney equation (Figure 5). The electron mobility of the electron-only devices with ZnO/PFB-Br, PFT-Br, PF2T-Br was 3.97×10-4, 3.27×10-4, 2.87×10-4cm2V-1s-1, respectively. CPEs shows higher electron mobility than the pristine ZnO (2.1×10-4 cm2V-1s-1). The Jsc data of the devices with CPEs were improved compared to pristine ZnO. Consequently, electron mobility through the changing of recombination resistance is derived from the CPE backbone orientation. During the spin-coating of CPEs, the ionic groups are moved toward the ZnO layer. In contrast, the hydrophobic part of the polyelectrolyte is shifted toward the surface of the active layer.
The Voc and Jsc of the devices vs. illumination intensity was plotted for investigating the charge recombination kinetics. The Voc vs. light intensity is briefly defined as Voc m skT/q ln(I). The Jsc vs. light intensity is defined as Jsc m Ia. Where I is the illumination intensity, k, T, and q are the Boltzmann constant, the temperature in Kelvin, and electron charge, respectively. When a values are nearest or equal to 1, the bimolecular recombination is dominated in the entire devices under short circuit conditions. In Figure 6, the value of α based on ZnO/PFB-Br, PFT-Br, PF2T-Br was 0.99, 0.98, and 0.97, respectively.
In contrast, the a value of the ZnO monolayer was 0.968. Noticeably, the a value indicated that the modified layer slightly near to bimolecular recombination. When s value reaches 2, the devices exhibit dominant trap-assisted recombination. However, if the device exhibits the band-to-band recombination, then the n value is near unity.66 The s values of the devices with ZnO, ZnO/PFB-Br, ZnO/PFT-Br, and ZnO/PF2T-Br, were 1.56, 1.57, 1.48, and 1.55, respectively. Most of the device parameters related to the charge extraction and recombination of the devices. Those are improved by introducing the conjugated polyelectrolyte interlayer in ZnO. Besides, the change in the a and s values of the devices agree well with the PCE trend of PSCs.67

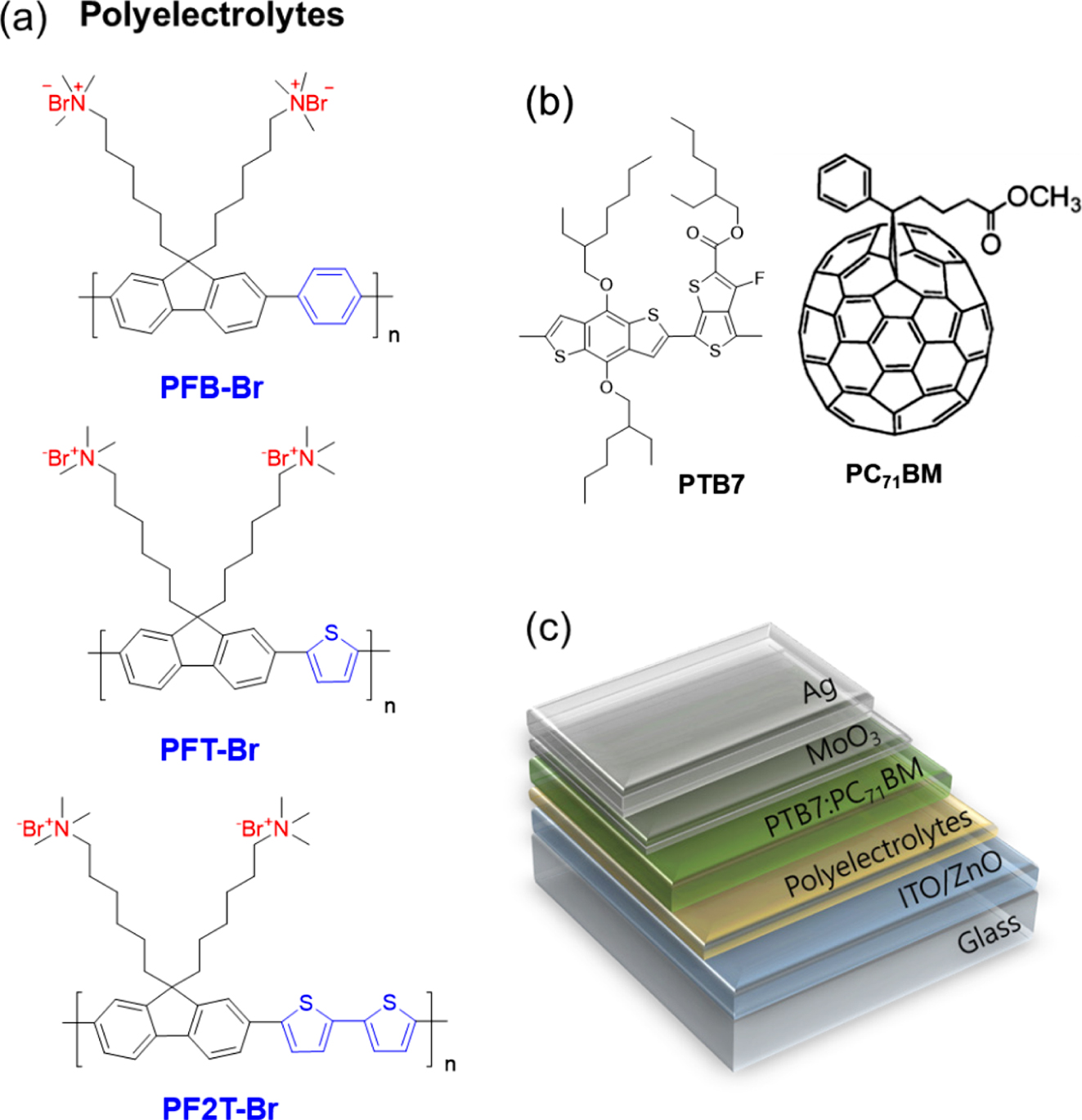

Chemical structure of (a) conjugated polyelectrolytes; (b) PTB7 and PC71BM; (c) device architecture of iPSC in this research.

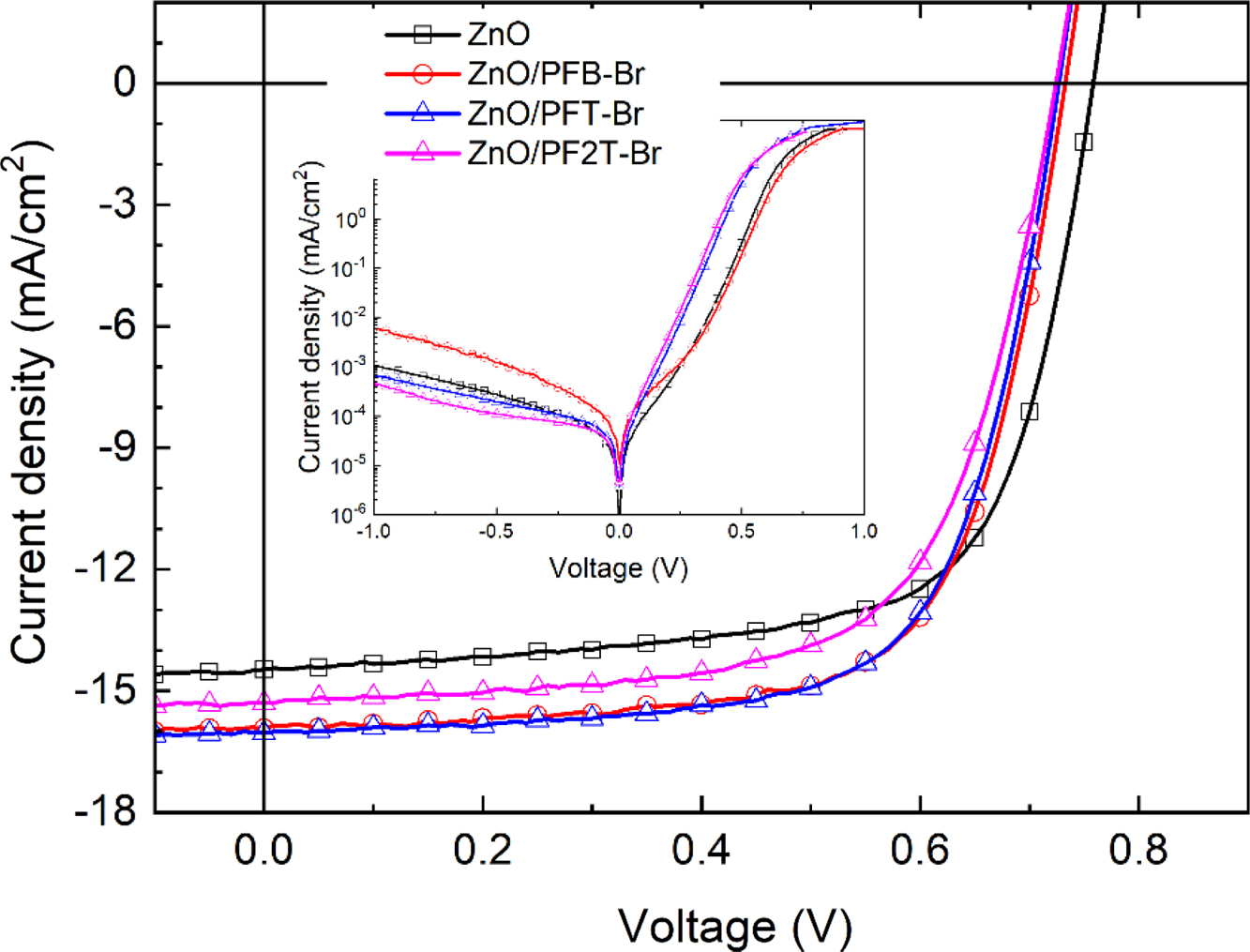

Current density–voltage curves of PSCs under illumination (inset: under dark conditions).

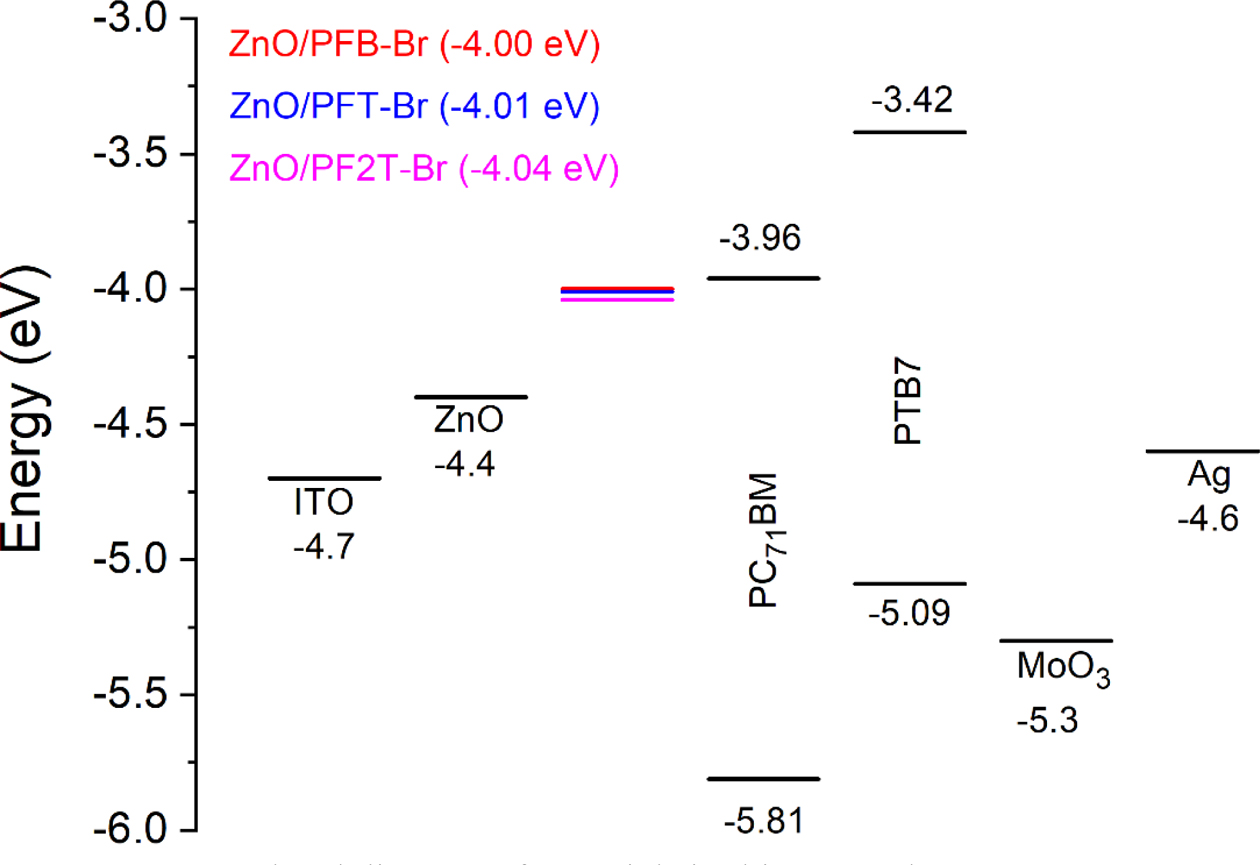

Energy level diagram of materials in this research.

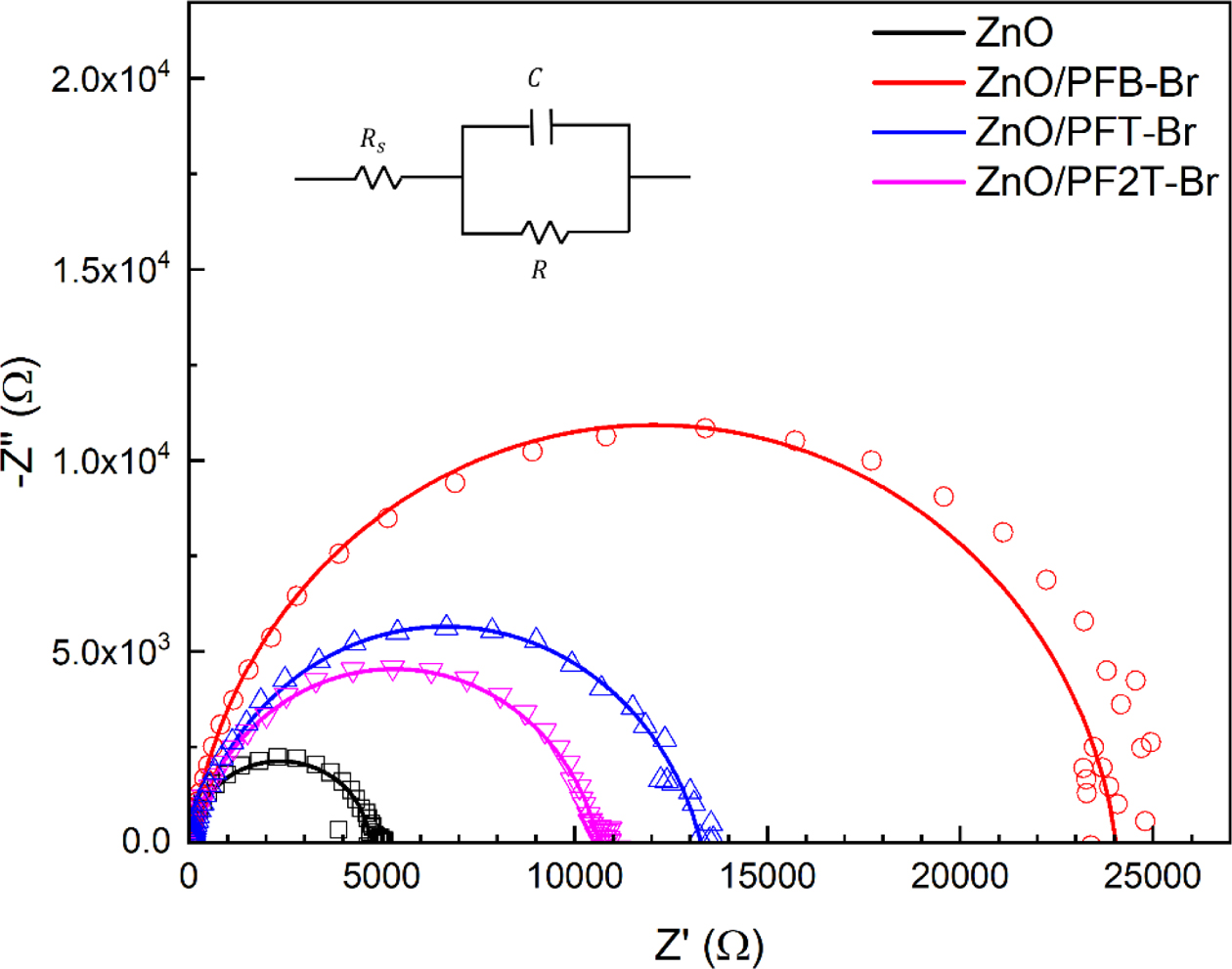

EIS spectra of the PSCs (inset represents the equivalent circuit for analysis, Rs: Ohmic resistance related to the electrodes and the bulk, R: resistance related with the interface charge transport, C: capacitance)

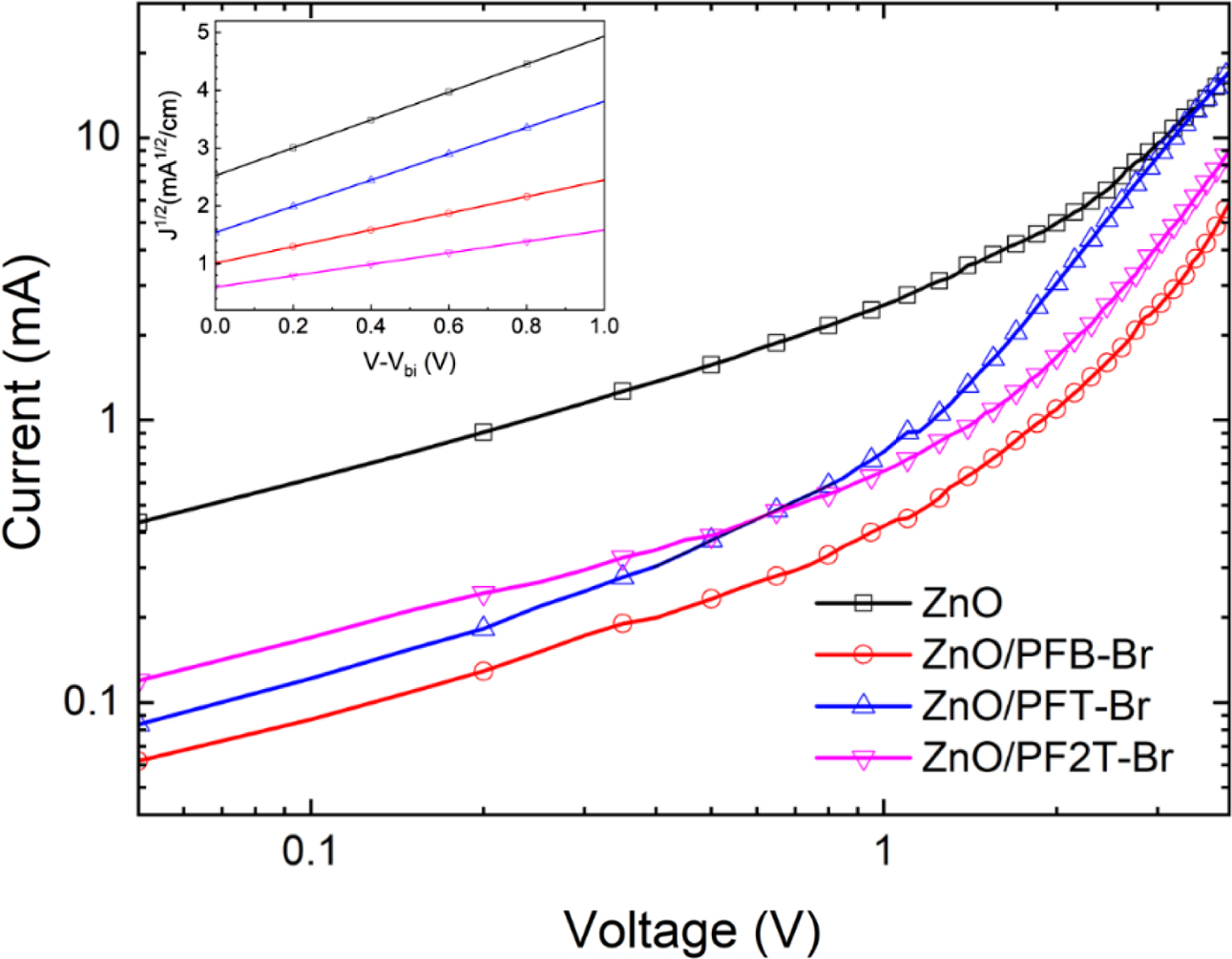

Current densi ty vs. voltage curves of the electron-only devices (inset: with a fitted line, V: applied voltage, Vbi: built-in voltage).

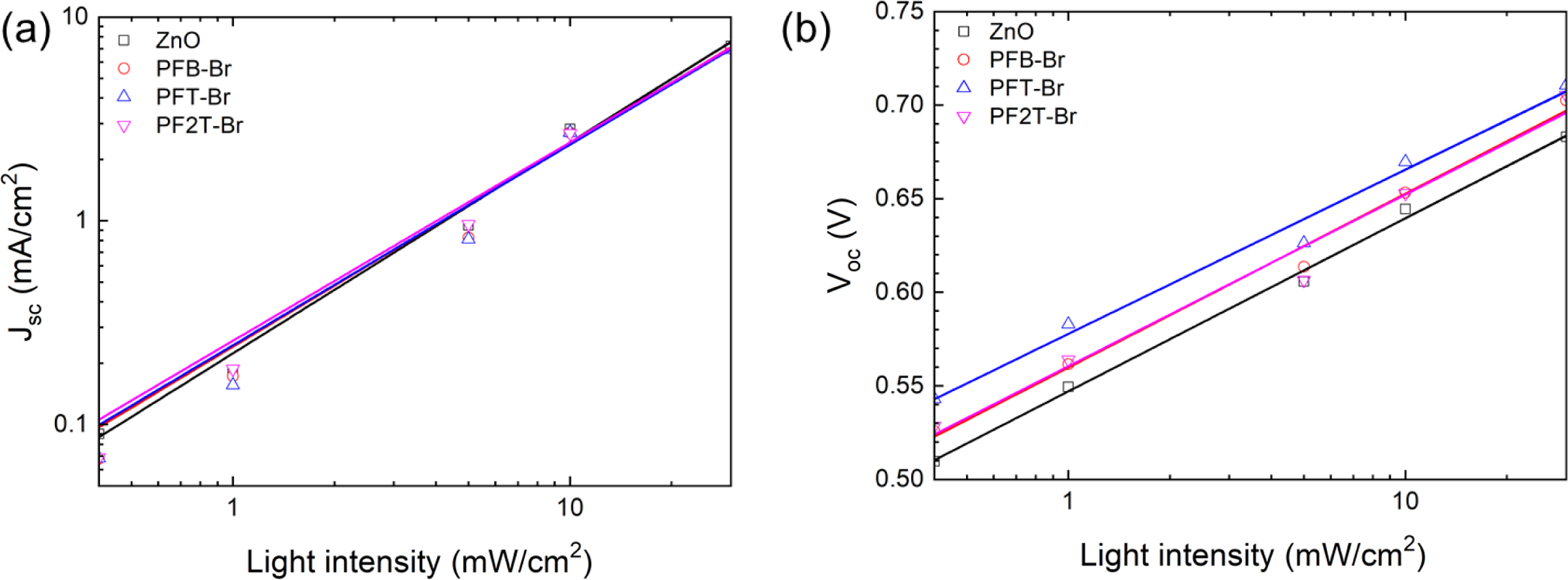

(a) Jsc; (b) Voc vs. illumination intensity.

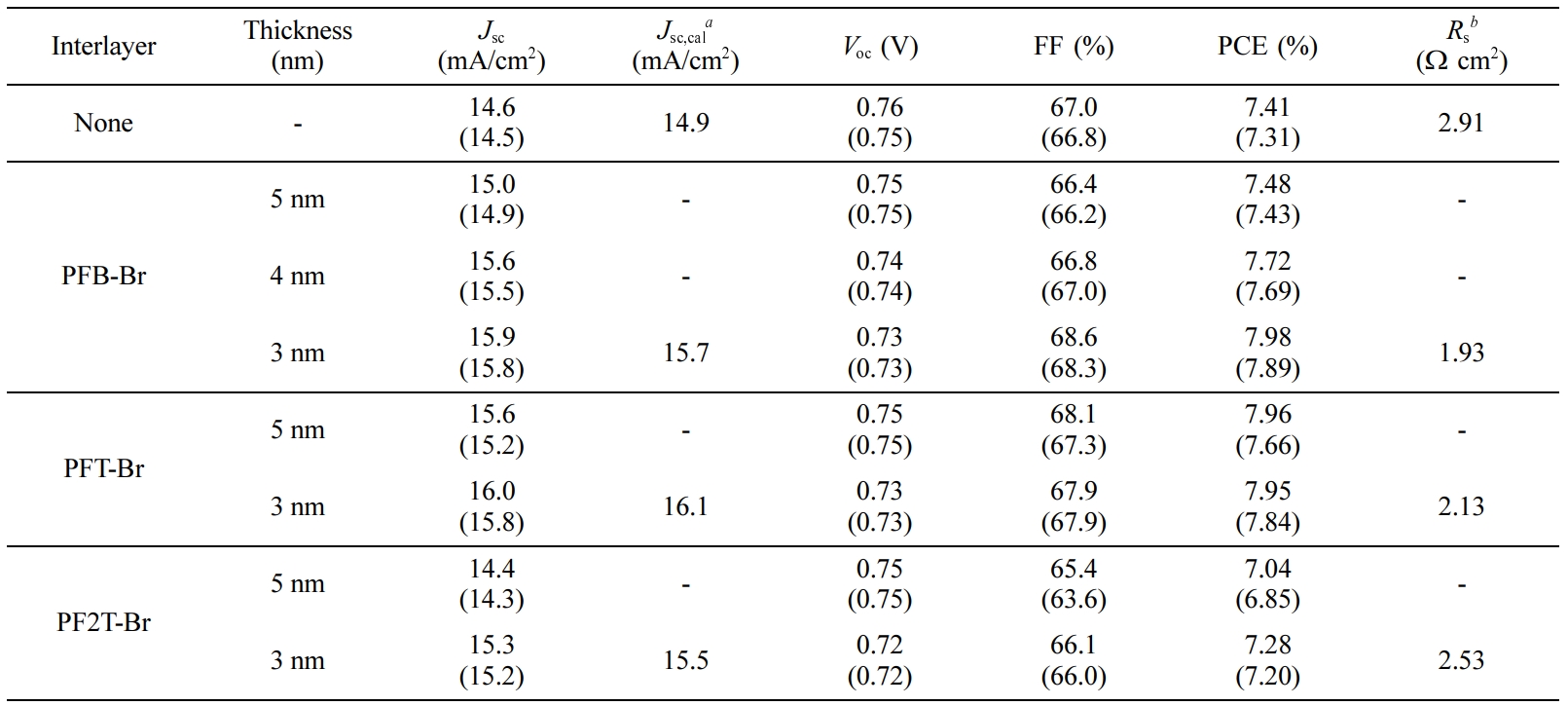

Photovoltaic Performances of PSCs with the Best PCE. The Averages of 20 Devices are Shown in Parentheses
a Calculated from IPCE curves. b Series resistance data are calculated from the device showing the best PCE.
The inverted PSCs with a blend of PTB7:PC71BM were fabricated to investigate the effect of CPEs on the devices. The CPE based on fluorene named PFB-Br, PFT-Br, and PF2T-Br, which have different backbone structures influence the electronic and photovoltaic properties. The efficiency of the device with CPEs as interlayer is higher than the device without CPEs, indicating the reduction of a Schottky barrier. The ionic pendant and organic backbone structure spontaneously reorient to ZnO and active layer during the fabrication process, respectively. Although CPEs has the same ion pendant groups, the PCE of the PSCs with PFB-Br is higher than those of the device with PF2T-Br. Whereas, PFB-Br has better electron-affinity owing to benzene moiety, shows facile electron collection. PF2T-Br show inhibited electron collection induced from an abundant electron density of backbone structure leads to lower device efficiency compare with PFB-Br.
